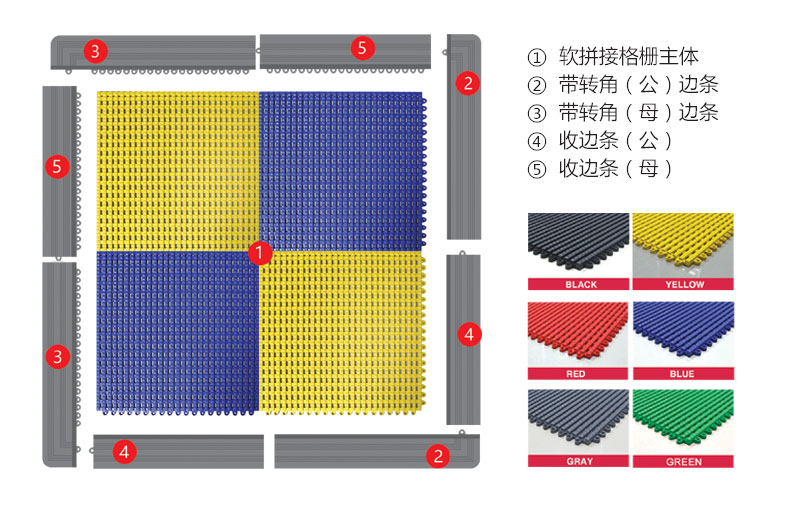

A complete set of soft modular grating (Patent No. ZL201520725751.X)is made up of main mat, male edge, female edge and corner, the main floor size is 400mm*400mm, thickness is 13mm, while the size is 400mm*80mm*13mm, edge size with corner is 480mm*80mm*13mm.

Zhenghe soft modular grating (patent No. ZL201520725751.X) is made of thick solid strip support, and the wide drainage hole is convenient for the discharge of water and sediment. Below with hundreds of solid anti-skid support, bearing can reach 10 tons per square meter or more, easily withstand forklift, ordinary vehicles rolling back and forth, especially suitable for ground laying in the car wash shop, food factory, seafood processing plants and other enterprises and institutions, but also can be used as a welcome mat.


Zhenghe soft modular grating is square structure, the matrix type dense locking connection buckle, solid, simple construction, a variety of colors for collocation, after laying a neat appearance. Products as a whole uses soft materials, so that cleaning is becoming more simple, as long as the whole ground can be rolled up to clean up the bottom of the ground, it is efficient and convenient.



Matters need attention

This product is used in the ordinary indoor workshop, if need such as anti-static, anti ageing, flame retardant and other special index, please highlight; 2, the product is recommended between the construction of the environmental temperature of 25 to 35 DEG C, the temperature is too high or too low will have a certain impact on the installation and use; 3, this product is not recommended in the outdoor use or direct sunlight; 4, after the completion of laying aside for 24 hours, let the natural release of tension before placing heavy objects; 5, the laying of the product more than 100 square meters area need to set expansion joints, fully considering the influence of expansion and contraction; 6, such as the laying position often overload heavy vehicles, in the condition of permitting the best use of the adhesive; 7, in the process of construction must be put line laying, from side to side extending past, is prohibited from both sides to the middle while laying together.
